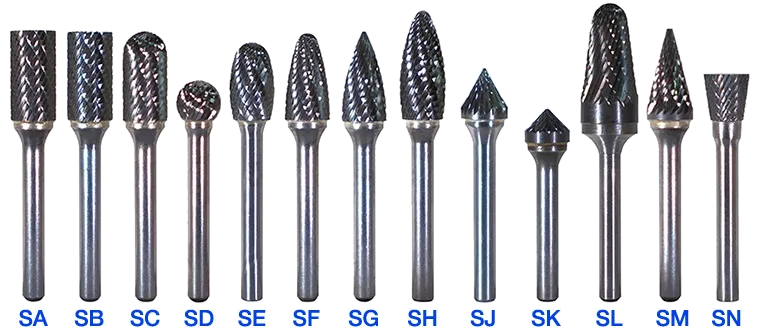

Cylindrical Shape Burs (SA)
page 365
Solid Carbide Cylindrical Shape Burs are designed for
deburring and speed milling straight edges and plain surfaces
on tough metals. They are also used for finishing abrasive materials
and general purpose chamfering. These burs are also known as
SA Solid Carbide Cylindrical Shape Burs or simply as SA Burs.
Cylindrical End Cut Burs (SB)
page 365
Solid Carbide Cylindrical Shape End Cut Burs are designed for
both end and side cutting. They are used for deburring and finishing
flat bottom holes and slots. These burs are also known as SB
Solid Carbide Cylindrical Shape End Cut Burs or simply as SB Burs.
Cylindrical Radius End Burs (SC)
page 365
Solid Carbide Cylindrical Shape Radius End Burs are designed
for deburring inside areas with a shouldered radius or for round
bottom holes, convex slots, and other curved surfaces. They can
also be used to prepare metal edges for welding fabrications.
These burs are also known as SC Solid Carbide Cylindrical Shape
Radius End Burs, Solid Carbide Bull Nose Cylindrical Shape Burs,
or simply as SC Burs.
Ball Shape Burs (SD)
page 366
Solid Carbide Ball Shaped Burs are designed for deburring round
bottom holes, convex slots, and curved metal and material surfaces.
They are also used to enlarge or elongate small holes to dress
hard fillet welds. These burs are also known as SD Solid Carbide
Ball Shaped Burs or simply as SD Burs.
Oval Shape Burs (SE)
page 366
Solid Carbide Oval Shape Burs are designed for deburring and
finishing curved surfaces in steel dies, forgings, castings,
and metal patterns. They are used for dressing hard fillet welds.
These burs are also known as SE Solid Carbide Oval Shaped Burs
or simply as SE Burs.
Tree Shape Radius End Burs (SF)
page 366
Solid Carbide Tree Shape Radius End Burs are designed for deburring
and finishing deep contoured surfaces in steel dies, molds, and
metal patterns. They are also used for repairing slug damaged spots
on dies. These burs are also known as SF Solid Carbide Tree Shape
Radius End Burs or simply as SF Burs.
Tree Shape Pointed End Burs (SG)
page 366
Solid Carbide Tree Shape Pointed End Burs are designed for deburring
and finishing the curved top inside wall of steel dies, castings,
forgings, or metal patterns. They are also used to repair slug
damaged spots on dies. These burs are also known as SG Solid
Carbide Tree Shape Pointed End Burs or simply as SG burs.
Flame Shape Burs (SH)
page 367
Solid Carbide Flame Shape Burs are designed for deburring and
finishing elliptic surfaces in steel dies, forgings, castings,
and metal patterns. These burs are also known as SH Solid Carbide
Flame Shape Burs or simply as SH
Burs.
60 Degree Cone Shape Burs (SJ)
page 367
Solid Carbide 60 Degree Cone Shaped Burs are designed with a
60 degree cone shape for deburring, enlarging, or chamfering
countersink bolt holes, repairing damaged 60 degree threads,
V-grooves, and other angular metal and material surfaces. They
can also be used to prepare metal edges for welding fabrication.
These burs are also known as SJ Solid Carbide 60 Degree Cone
Shaped Burs or simply as SJ Burs.
90 Degree Cone Shape Burs (SK)
page 367
Solid Carbide 90 Degree Cone Shaped Burs are designed with a
90 degree cone shape for deburring, enlarging, or chamfering
countersink bolt holes, V-grooves, and other angular metal and
material surfaces. These burs are also known as SK Solid Carbide
90 Degree Cone Shaped Burs or simply as SK Burs.
14 Degree Taper Radius End Burs (SL)
page 367
Solid Carbide 14 Degree Taper Radius End Burs are designed with
a ball nose and 14 degree taper for deburring and removing scale
in steel die and mold cavities. These burs are also known as
SL Solid Carbide 14 Degree Taper Shape Radius End Burs or simply
as SL Burs.
Cone Shape Burs (SM)
page 367
Solid Carbide Cone Shaped Burs are designed for deburring gear
teeth, heat exchanger fan blades, inside bevel edges, and internal
pipe edges. These burs are also known as SM Solid Carbide Cone
Shaped Burs or simply as SM Burs.
Inverted Cone Shape Burs (SN)
page 367
Solid Carbide Inverted Cone Shape Burs are designed for deburring
and finishing dovetail slots, gib blocks, and other inverted
angular metal and material surfaces. These burs are also known
as SN Solid Carbide Flame Shape Burs or simply as SN Burs.
14 Degree Taper NF Burs - Radius End
page 364
Ball Shape NF Burs
page 364
Cylinder Shape NF Burs
page 364
Cylinder Shape NF Burs - Radius End
page 364
Oval Shape NF Burs
page 364
Tree Shape NF Burs - Radius End
page 364
Solid Carbide NF Burs are designed
with a milling relief style of flute grind for fast stock removal
and easy chip flow with minimum loading. For use on non-ferrous
metals, aluminum, reinforced plastics, and other soft, sticky
materials. Zirconium Nitride Coated Solid Carbide NF Burs
are the ideal choice for maximizing bur life in long production
runs, especially aluminum. As an investment, they cost about
14% more, and produce an average 300% improvement over uncoated
tools when machining above materials.
