FRACTIONAL

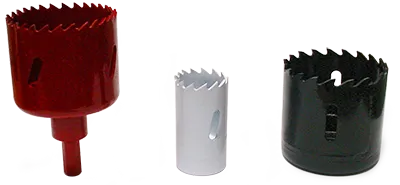

Hole Saws - Bi-Metal - Separate Arbor Style
page 336
Hole Saws have a high speed steel cutting edge electron-beam welded to a tough alloy steel back. Cuts clean and accurate holes in virtually any machinable material - steel, cast iron, stainless steel, non-ferrous metals, wood, or plastics. Variable pitch hole saws 1-3/8 deep holes. Arbor is sold separately.
Extra Large Hole Saws are any hole saw over 6 inches in diameter.
Hole Saws - Bi-Metal - Built-In Arbor Style
page 337
Hole Saws have a high speed steel cutting edge electron-beam
welded to a tough alloy steel back. Cuts clean and accurate holes
in virtually any machinable material - steel, cast iron, stainless
steel, non-ferrous metals, wood, or plastics. Variable pitch
hole saws 1-3/8 deep holes. Built in arbor.
Extra Large Hole Saws are any hole saw over 6 inches in diameter.
Hole Cutters
page 340A
Carbide Tipped Hole Cutters are designed for cutting steel plate, stainless steel, galvanized iron, fiberglass, aluminum, and copper up to 3/16 thick. Built-in safety stopper prevents over penetration. Ejector spring ejects slug to save production time. The center drill is a Titanium Nitride coated 135° split point drill. Used by electricians, plumbers, auto and truck repairmen, and general contractors.
METRIC
Metric Hole Saws - Bi-Metal - Separate Arbor Style
page 336A
Metric Hole Saws have a high speed steel cutting edge electron-beam welded to a tough alloy steel back. Cuts clean and accurate holes in virtually any machinable material - steel, cast iron, stainless steel, non-ferrous metals, wood, or plastics. Variable pitch hole saws 1-3/8 deep holes. Arbor is sold separately.
Extra Large Metric Hole Saws are any hole saw over 152mm in diameter.
Metric Hole Saws - Bi-Metal - Built-In Arbor Style
page 337A
Metric Hole Saws have a high speed steel cutting edge electron-beam
welded to a tough alloy steel back. Cuts clean and accurate holes
in virtually any machinable material - steel, cast iron, stainless
steel, non-ferrous metals, wood, or plastics. Variable pitch
hole saws 1-3/8 deep holes. Built in arbor.
Extra Large Metric Hole Saws are any hole saw over 152mm in diameter.
Metric Hole Cutters
page 340A
Carbide Tipped Metric Hole Cutters are designed for cutting steel plate, stainless steel, galvanized iron, fiberglass, aluminum, and copper up to 4.75mm thick. Built-in safety stopper prevents over penetration. Ejector spring ejects slug to save production time. The center drill is a Titanium Nitride coated 135° split point drill. Used by electricians, plumbers, auto and truck repairmen, and general contractors.
Hole Saw Blades - Carbide Grit Edged
page 341
Carbide Grit Edged Hole Saws have no teeth to chip or dull and will last up to
10 times longer than High Speed Steel Hole Saws. Cuts almost all the materials
which diamond hole saws can cut at less than half the cost. Used to cut the most
difficult work encountered: cast iron, ceramic tile, fiberglass (all types),
plastic laminates, etc.
Recessed Lighting Hole Saws - Carbide Grit Edged
page 342
Carbide Grit Edged Recessed Lighting Holesaws are designed for
electricians. They are used to drill holes in ceilings for recessed
lighting fixtures. Carbide Grit Edged Holesaws have no teeth
to eliminate snagging. Will cut almost any ceiling material encountered.
"D" Drive Hole Saw - Carbide Grit Edged
page 342
Carbide Grit Edged D-Drive Hole Saws are specifically designed
to drill plumbing installation holes in fiberglass bathtubs,
showers, spas, hot tubs, etc. D-Drive hole saws derive their
name from having a "D" shaped
arbor hole.
Carbide Tipped Hole Saws
page 340
Carbide Tipped Hole Saws retain their cutting edge up to 10 times
longer than high speed steel hole saws. They cut clean and accurate
holes 1-7/8" deep.
Carbide tips withstand heat and abrasion extremely well and can
be run at faster speeds, resulting in a reduction of cutting
time and cost per cut. Carbide Tipped Hole Saws are not designed
for cutting concrete, steel, or other ferrous materials. They
are designed for cutting abrasive materials, i.e., fiberglass,
particle board, aluminum castings, copper, and asbestos board.
FRACTIONAL - CARBIDE GRIT EDGED
Mechanic’s Carbide Grit Edged Hole Saw Kit
page 341
1 each 7/8, 1, 1-1/8, 1-1/4, 1-1/2 Hole Saws, HSM-6 Arbor.
Maintenance Carbide Grit Edged Hole Saw Kit
page 341
1 each 3/4, 7/8, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2 Hole Saws, HSM-3, HSM-4, HSM-6 Arbors and 12 inch Extension.
Plumber’s Carbide Grit Edged Hole Saw Kit
page 341
1 each 3/4, 7/8, 1-1/8, 1-1/2, 1-3/4, 2-1/4 Hole Saws, HSM-3 and HSM-4 Arbors, and HSPD-3S Pilot Drill.
Electrician’s Carbide Grit Edged Hole Saw Kit
page 341
1 each 7/8, 1-1/8, 1-3/8, 1-3/4, 2, 2-1/2 Hole Saws, HSM-3 and HSM-4 Arbors, and HSPD-3S Pilot Drill.
FRACTIONAL - BI-METAL - BUILT-IN ARBOR
Mechanic’s Hole Saw Kit
page 337
1 each 7/8, 1, 1-1/8, 1-1/4, 1-1/2 Hole Saws, and 1 Pilot Drill.
Electrician’s Hole Saw Kit
page 337
1 each 7/8, 1-1/8, 1-3/8, 1-3/4, 2, 2-1/2 Hole Saws, and 3 Pilot Drills.
Plumber’s Hole Saw Kit
page 337
1 each 3/4, 7/8, 1-1/8, 1-1/2, 1-3/4, 2-1/4 Hole Saws, and 3 Pilot Drills.
Locksmith’s Hole Saw Kit
page 337
1 each 3/4, 7/8, 1, 1-3/8, 1-1/2, 1-5/8, 1-3/4, 2-1/8 Hole Saws, 4 Pilot Drills and 1 Screwdriver.
Maintenance Hole Saw Kit
page 337
1 each 3/4, 7/8, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2 Hole Saws, 4 Pilot Drills, 12 inch Extension, and 1 Screwdriver.
METRIC - BI-METAL - BUILT-IN ARBOR
Mechanic’s Metric Hole Saw Kit
page 337A
1 each 22mm, 25mm, 29mm, 32mm, 38mm Hole Saws, and 1 Pilot Drill.
Electrician’s Metric Hole Saw Kit
page 337A
1 each 22mm, 29mm, 35mm, 44mm, 51mm, 64mm Hole Saws, and 3 Pilot Drills.
Plumber’s Metric Hole Saw Kit
page 337A
1 each 19mm, 22mm, 29mm, 38mm, 44mm, 57mm Hole Saws, and 3 Pilot Drills.
Locksmith’s Metric Hole Saw Kit
page 337A
1 each 19mm, 22mm, 25mm, 35mm, 38mm, 41mm, 44mm, 54mm Hole Saws, 4 Pilot Drills and 1 Screwdriver.
Maintenance Metric Hole Saw Kit
page 337A
1 each 19mm, 22mm, 29mm, 35mm, 38mm, 44mm, 51mm, 57mm, 64mm Hole Saws, 4 Pilot Drills, 12" Extension and 1 Screwdriver.
FRACTIONAL - BI-METAL - SEPARATE ARBOR
Mechanic’s Hole Saw Kit
page 336
1 each 7/8, 1, 1-1/8, 1-1/4, 1-1/2 Hole Saws, HSM-6 Arbor.
Electrician’s Hole Saw Kit
page 336
1 each 7/8, 1-1/8, 1-3/8, 1-3/4, 2, 2-1/2 Hole Saws, HSM-3 and HSM-4 Arbors, and HSPD-3S Pilot Drill.
Plumber’s Hole Saw Kit
page 336
1 each 3/4, 7/8, 1-1/8, 1-1/2, 1-3/4, 2-1/4 Hole Saws, HSM-3 and HSM-4 Arbors, and HSPD-3S Pilot Drill.
Maintenance Hole Saw Kit
page 336
1 each 3/4, 7/8, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 2-1/4, 2-1/2 Hole Saws, HSM-3, HSM-4, HSM-6 Arbors and 12" extension.
METRIC - BI-METAL - SEPARATE ARBOR
Mechanic’s Metric Hole Saw Kit
page 336A
1 each 22mm, 25mm, 29mm, 32mm, 38mm Hole Saws, HSM-6 Arbor.
Electrician’s Metric Hole Saw Kit
page 336A
1 each 22mm, 29mm, 35mm, 44mm, 51mm, 64mm Hole Saws, HSM-3 and HSM-4 Arbors, and HSPD-3S Pilot Drill.
Plumber’s Metric Hole Saw Kit
page 336A
1 each 19mm, 22mm, 29mm, 38mm, 44mm, 57mm Hole Saws, HSM-3 and HSM-4 Arbors, and HSPD-3S Pilot Drill.
Maintenance Metric Hole Saw Kit
page 336A
1 each 19mm, 22mm, 29mm, 35mm, 38mm, 44mm, 51mm, 57mm, 64mm Hole Saws, HSM-3, HSM-4, HSM-6 Arbors and 12" extension.
Hole Saw Arbor Mandrel With 1/4" HSS Pilot Drill
page 338
Fits all standard Bi-Metal Hole Saws.
Plug Ejecting Hole Saw Arbor Mandrel With 1/4" HSS Pilot Drill
page 338
For use with Vermont American© Plug Ejecting Hole Saws and Plug Ejecting Arbor.
Plug Ejecting Hole Saw Arbor Adapters
page 338
Plug Ejecting Arbor Adapters convert all standard Hole Saws into plug ejecting
style. Just screw adapter into hole saw, then insert Plug Ejecting Arbor, cut
hole, put drill in reverse and plug is ejected. Speed up production 400%.
Mandrel (Arbor) Adapter
page 339
Adapts Arbors with 1/2-20 threads to fit hole saws with 5/8-18 threads.
Driving Plates
page 339
For reinforcing larger diameter hole saws permitting greater feeds and models.
Hole Saw Extensions
page 339
For boring jobs requiring longer reach. Extensions can be connected to one another for extra long reach. Hex wrench included.
Pilot Drill For Hole Saws
page 339
For use in Hole Saws, Hole Cutters, and other Pilot Tools.
Carbide Tipped Pilot Drill
page 339
For use in Hole Saws, Hole Cutters, and other Pilot Tools.
"D" Drive Arbor/Pilot Drills
page 339
For use in "D" Drive Hole Saws and other Hole Saws.
